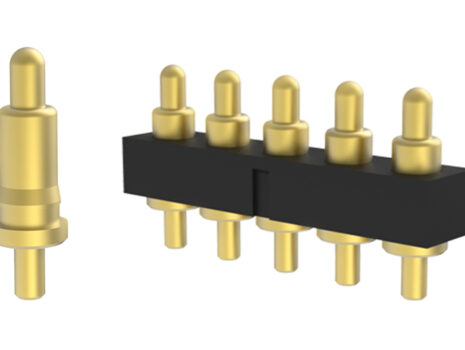

Pogo Pin Characteristics
Common structure of pogo pin
Pogo pin contact principle
Characteristics
- Long service time, 10,000 times
- No tooling fee,easy go customize
- Adjustable and measurable spring force
- Fine pitch
- Flexible manufacturing ways: SMT,plug-in...
- Save space: help mechanical engineer easily allocatecomponents on PCB
- Good performance on RF solution
- RoHS and Halogen Free
Common internal structure of Pogo Pin
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Contact stability | ★ ★ ★ ★ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ★ ★ |
| Processing cost | ★ ★ ★ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ★ ★ ☆ |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
Product Model
| Index | Part No. | ∅ A | B | ∅ C | D | E | F | G | Force(gf) | PDF |
|---|
| Index | Part No. | ∅ A | B | ∅ C | D | E | F | G | Force(gf) | PDF |
|---|
| 1 | 10101011195 | 1 | 0.4 | 1.5 | 0.4 | 1.3 | 2.05 | 1.5 | 40 Min | |
| 2 | 20101011171 | 0 | 0 | 1.5 | 0.4 | 1.7 | 2.25 | 1.85 | 40±10 | |
| 3 | 101118-1 | 0 | 0 | 1.1 | 0.4 | 1.78 | 2.4 | 1.9 | 70±20 | |
| 4 | 100983-1 | 0 | 0 | 1.5 | 0.4 | 1.8 | 2.4 | 1.9 | 70±20 | |
| 5 | 101448-1 | 0 | 0 | 1.1 | 0.6 | 1.88 | 2.5 | 2 | 70±20 | |
| 6 | 20101010994 | 1 | 0.4 | 1.5 | 0.4 | 1.8 | 2.7 | 2 | 40 Min | |
| 7 | 1001126-1 | 0 | 0 | 1.5 | 0.4 | 1.88 | 2.5 | 2 | 70±20 | |
| 8 | 1001074-1 | 1 | 0.65 | 1.5 | 0.4 | 1.85 | 2.8 | 2.1 | 40±10 | |
| 9 | 20101011056 | 0 | 0 | 1.5 | 0.4 | 2 | 2.8 | 2.2 | 60±15 | |
| 10 | 20101011057 | 0 | 0 | 1.5 | 0.4 | 2.2 | 3 | 2.4 | 60±10 | |
| 11 | 10101011194 | 1.25 | 0.4 | 1.8 | 0.5 | 2.2 | 3.2 | 2.4 | 70±20 | |
| 12 | 20101011177 | 0 | 0 | 1.5 | 0.4 | 2.4 | 3.4 | 2.7 | 50±20 | |
| 13 | 20101011178 | 0 | 0 | 1.5 | 0.4 | 2.7 | 3.6 | 2.9 | 65±20 | |
| 14 | 10101011430 | 0 | 0 | 1.5 | 1.1 | 2.6 | 3.55 | 2.8 | 60±10 | |
| 15 | 10101011538 | 0 | 0 | 1.4 | 1.3 | 2.8 | 3.75 | 3 | 60±15 | |
| 16 | 20101011179 | 0 | 0 | 1.5 | 0.4 | 3.1 | 4 | 3.3 | 60±20 | |
| 17 | 10101011219 | 0 | 0 | 1.8 | 0.5 | 2.8 | 3.8 | 3 | 70±20 | |
| 18 | 10101011220 | 0 | 0 | 1.8 | 0.5 | 3.2 | 4.2 | 3.4 | 70±20 | |
| 19 | 101317-1 | 0 | 0 | 1 | 0.4 | 3.7 | 4.8 | 4 | 100±30 | |
| 20 | 101180-1 | 0.5 | 6.5 | 0 | 0 | 4 | 5.7 | 4.7 | 115±25 | |
| 21 | 20101011111 | 0 | 0 | 1.4 | 0.4 | 5.9 | 7.4 | 6.2 | 80±25 | |
| 22 | 20101011436 | 0.8 | 1.3 | 1.7 | 0.5 | 5.8 | 6.9 | 6.15 | 60 min | |
| 23 | 20101011443 | 0.5 | 0.65 | 1.35 | 0.4 | 2.2 | 2.9 | 2.4 | 60±20 | |
| 24 | 20101011520 | 0 | 0 | 1.4 | 0.35 | 1.9 | 2.6 | 2.1 | 40±15 | |
| 25 | 20101011461 | 0.5 | 0.65 | 1.35 | 0.4 | 2.2 | 2.9 | 2.4 | 60±20 | |
| 26 | 20101011616 | 0 | 0 | 1.35 | 0.4 | 2.5 | 3.3 | 2.7 | 70±15 | |
| 27 | 20101011585 | 0.5 | 0.8 | 1.4 | 0.45 | 3.4 | 4.5 | 3.7 | 40±15 | |
| 28 | 20101011488 | 0 | 0 | 0 | 0 | 1.95 | 2.6 | 2.1 | 60±20 | |
| 29 | 20101011156 | 1 | 2.6 | 1.6 | 0.5 | 4.65 | 5.65 | 5 | 35±8 | |
| 30 | 20101011271 | 0.6 | 1.5 | 1.5 | 0.5 | 4.35 | 5.3 | 4.6 | 40±10 | |
| 31 | 20101011943 | 0.6 | 2.3 | 0 | 0 | 4 | 5.5 | 4.5 | 50±10 | |
| 32 | 20101011857 | 1.5 | 2 | 2.2 | 0.5 | 4 | 5.5 | 4.5 | 36±7 | |
| 33 | 20101011270 | 0 | 0 | 1.3 | 0.85 | 1.83 | 2.45 | 1.95 | 65±20 | |
| 34 | 20101011939 | 0.6 | 1.5 | 1.5 | 0.5 | 4.35 | 5.3 | 4.6 | 40±10 | |
| 35 | 20101011820 | 1 | 2.6 | 1.6 | 0.5 | 4.65 | 5.6 | 5 | 35±8 | |
| 36 | 20101011918 | 0 | 0 | 1.8 | 1.8 | 3 | 4 | 3.3 | 70±15 | |
| 37 | 20101011475 | 1.2 | 1 | 1.75 | 0.9 | 3.95 | 5.05 | 4.35 | 32±10 | |
| 38 | 20101011474 | 1.2 | 1 | 1.75 | 0.9 | 3.6 | 4.7 | 4 | 32±10 | |
| 39 | 20101011432 | 0 | 0 | 1.5 | 0.5 | 3.8 | 5.15 | 4.35 | 40±10 | |
| 40 | 20101011431 | 0 | 0 | 1.5 | 0.5 | 3.45 | 4.8 | 4 | 40±10 | |
| 41 | 10101011903 | 0 | 0 | 1.5 | 0.6 | 2.1 | 3 | 2.45 | 70±20 | |
| Index | Part No. | ∅ A | B | ∅ C | D | E | F | G | Force(gf) | PDF |
|---|
| Index | Part No. | ∅ A | B | ∅ C | D | E | F | G | Force(gf) | PDF |
|---|
| 1 | 101633-1 | 0 | 0 | 1.4 | 0.4 | 1.78 | 2.4 | 2 | 60±20 | |
| 2 | 101160-1 | 0 | 0 | 1.5 | 1 | 4 | 5.7 | 4.7 | 80 min | |
| 3 | 101368-1 | 0 | 0 | 1.5 | 1 | 2.6 | 3.6 | 2.95 | 70±25 | |
| 4 | 101444-1 | 0 | 0 | 1.5 | 0.6 | 2.2 | 3 | 2.5 | 70±20 | |
| 5 | 101452-1 | 0 | 0 | 1.4 | 1.3 | 3.5 | 5 | 4.3 | 30±10 | |
| 6 | 101567-1 | 0 | 0 | 2 | 0.6 | 4.35 | 6.05 | 5.35 | 70 min | |
| 7 | 101687-1 | 0.6 | 1.3 | 0 | 0 | 7.1 | 8.9 | 7.6 | 80±35 | |
| 8 | 101717-1 | 0.6 | 1.3 | 0 | 0 | 6 | 7.6 | 6.5 | 120±35 | |
| 9 | 100766-1 | 0 | 0 | 1.8 | 0.3 | 1.9 | 2.6 | 2.2 | 50 min | |
| 10 | 20101010974 | 0 | 0 | 1.6 | 0.8 | 4 | 5 | 4.2 | 110±30 | |
| 11 | 20101011081 | 0.6 | 0.8 | 1.6 | 0.4 | 3 | 4.2 | 3.5 | 40±10 | |
| 12 | 20101011307 | 0 | 0 | 1.95 | 0.56 | 3.65 | 4.6 | 3.9 | 30+15/-5 | |
| 13 | 20101011560 | 1.25 | 0.7 | 2.2 | 0.3 | 1.1 | 1.7 | 1.2 | 70±15 | |
| 14 | 20101011473 | 1.05 | 1.1 | 1.6 | 0.65 | 7.8 | 9.85 | 9.1 | 60±20 | |
| 15 | 20101011615 | 0.6 | 1.2 | 1.6 | 0.4 | 3.85 | 6.15 | 5.45 | 40±10 | |
| 16 | 20101011494 | 0.6 | 2.2 | 1.6 | 0.4 | 3.65 | 5.2 | 4.3 | 50±15 | |
| 17 | 20101011604 | 0.7 | 2.1 | 1.6 | 1 | 6.3 | 8 | 7 | 60±15 | |
| 18 | 20101011434 | 0.7 | 1.5 | 0 | 0 | 3.85 | 5.15 | 4.1 | 50±15 | |
| 19 | 20101011553 | 0 | 0 | 0 | 0 | 3.05 | 4.3 | 3.2 | 90±15 | |
| 20 | 20101011572 | 1.25 | 2 | 1.8 | 0.3 | 1.5 | 2.3 | 1.7 | 60±15 | |
| 21 | 20101011746 | 0.6 | 2.25 | 1.6 | 0.5 | 3.7 | 5.5 | 4.5 | 80±20 | |
| 22 | 20101011970 | 1.25 | 1 | 2.7 | 0.5 | 1.7 | 2.7 | 1.9 | 75±20 | |
| 23 | 20101011978 | 0 | 0 | 1.8 | 0.5 | 2.5 | 3.5 | 2.7 | 40±10 | |
| 24 | 20101011496 | 1.25 | 2.5 | 2 | 0.4 | 2.4 | 4 | 3.2 | 90±30 | |
| Index | Part No. | ∅ A | B | ∅ C | D | E | F | G | Force(gf) | PDF |
|---|
| Index | Part No. | ∅ A | B | ∅ C | D | E | F | G | Force(gf) | PDF |
|---|
| 1 | 101763-1 | 1.4 | 2.9 | 1.9 | 0.3 | 0.9 | 2.4 | 1.2 | 85 Min | |
| 2 | 101377-1 | 1.5 | 4.2 | 2.2 | 0.3 | 1.2 | 3.2 | 1.7 | 80±30 | |
| 3 | 101266-1 | 1.4 | 1.8 | 2.2 | 0.5 | 1.3 | 2.8 | 1.8 | 100±25 | |
| 4 | 101756-1 | 1.25 | 0.7 | 2.2 | 0.3 | 1.6 | 2.6 | 1.9 | 80±16 | |
| 5 | 101334-1 | 1.4 | 1.8 | 2.2 | 0.5 | 1.3 | 3.1 | 2.2 | 110±25 | |
| 6 | 101170-1 | 1.25 | 0.8 | 2 | 0.4 | 2.1 | 2.9 | 2.3 | 108±22 | |
| 7 | 101701-1 | 0.8 | 1.1 | 2.1 | 0.3 | 2.7 | 3.9 | 2.8 | 80 Max | |
| 8 | 101702-1 | 0.8 | 1.1 | 2.1 | 0.3 | 2.7 | 3.4 | 2.8 | 80 Max | |
| 9 | 101086-1 | 1 | 1 | 2 | 0.4 | 2.6 | 3.4 | 2.9 | 95 Min | |
| 10 | 101095-1 | 1 | 1 | 2 | 0.4 | 2.7 | 3.6 | 2.9 | 95 Min | |
| 11 | 101746-1 | 0.7 | 3 | 2 | 0.5 | 2.5 | 3.5 | 2.9 | 80±30 | |
| 12 | 101257-1 | 0.8 | 1 | 2 | 0.5 | 3 | 4.3 | 3.4 | 100±25 | |
| 13 | 101620-1 | 0.8 | 2.1 | 2 | 0.5 | 3 | 4.3 | 3.5 | 90±25 | |
| 14 | 101127-1 | 1 | 1 | 2 | 0.5 | 3.5 | 5 | 3.8 | 120+30/-20 | |
| 15 | 101256-1 | 0.8 | 1 | 2 | 0.5 | 3.4 | 4.9 | 3.9 | 130±25 | |
| 16 | 101621-1 | 1 | 2.1 | 2 | 0.5 | 3.5 | 5 | 3.9 | 150±35 | |
| 17 | 101061-1 | 1 | 1 | 2 | 0.5 | 3.5 | 5 | 4 | 135+40/-30 | |
| 18 | 101287-1 | 0.9 | 1 | 2 | 0.5 | 3.5 | 5 | 4 | 135±25 | |
| 19 | 101267-1 | 0.5 | 2.5 | 2 | 0.5 | 3.7 | 5.2 | 4.05 | 90 Min | |
| 20 | 101646-1 | 1.6 | 1.2 | 2 | 0.5 | 4 | 5.5 | 4.15 | 120±20 | |
| 21 | 101720-1 | 0.7 | 2.2 | 0 | 0 | 4 | 5.8 | 4.2 | 85 Min | |
| 22 | 101168-1 | 0.5 | 3.55 | 2 | 0.5 | 3.85 | 5.35 | 4.35 | 120+30/-20 | |
| 23 | 101150-1 | 0.9 | 2.3 | 2 | 0.5 | 3.5 | 5.5 | 4.4 | 113+30/-20 | |
| 24 | 101242-1 | 0.45 | 0.6 | 1.9 | 1 | 4 | 5 | 4.4 | 100 Max | |
| 25 | 101409-1 | 1.5 | 2.5 | 2.8 | 0.5 | 6.2 | 8.2 | 4.4 | 110±25 | |
| 26 | 101156-1 | 0.8 | 6.45 | 1.65 | 0.85 | 4.15 | 5.45 | 4.45 | 124±25 | |
| 27 | 101191-1 | 0.6 | 2.3 | 0 | 0 | 4 | 5.5 | 4.5 | 50±10 | |
| 28 | 101372-1 | 0.8 | 2 | 2 | 0.5 | 4 | 5.5 | 4.5 | 75±25 | |
| 29 | 101376-1 | 1 | 2.7 | 0 | 0 | 4 | 8.4 | 4.5 | 80±20 | |
| 30 | 101276-1 | 0.45 | 0.6 | 1.9 | 1 | 4 | 5.5 | 4.6 | 90±35 | |
| 31 | 101365-1 | 0.85 | 2 | 1.8 | 0.5 | 4.1 | 5.9 | 4.6 | 25±5 | |
| 32 | 101425-1 | 0.45 | 0.9 | 1.9 | 1 | 4 | 5.5 | 4.6 | 90±35 | |
| 33 | 101692-1 | 0.7 | 2.2 | 0 | 0 | 4.4 | 6.2 | 4.6 | 80 Min | |
| 34 | 101321-1 | 0.5 | 3.55 | 2 | 0.5 | 3.85 | 5.65 | 4.65 | 130+30/-20 | |
| 35 | 101536-1 | 0.8 | 0.8 | 2 | 0.5 | 4 | 6 | 4.8 | 200 Max | |
| 36 | 101099-1 | 0.5 | 0.8 | 2.3 | 0.8 | 4.3 | 6.1 | 4.9 | 90 Min | |
| 37 | 101461-1 | 1 | 1.6 | 2.3 | 0.8 | 4.3 | 6.1 | 4.9 | 90 Min | |
| 38 | 101479-1 | 0.65 | 1.75 | 1.83 | 0.4 | 4.5 | 6.9 | 4.9 | 130±30 | |
| 39 | 101203-1 | 0.5 | 5.55 | 2 | 0.5 | 4 | 6 | 5 | 120+30/-20 | |
| 40 | 101449-1 | 1 | 0.8 | 2 | 1.5 | 4 | 6 | 5 | 135±25 | |
| 41 | 101523-1 | 0.8 | 2 | 2 | 0.5 | 4.5 | 6 | 5 | 90 Min | |
| 42 | 101550-1 | 0.8 | 2 | 2 | 0.5 | 4 | 6 | 5.2 | 80±25 | |
| 43 | 101345-1 | 1 | 1 | 2 | 1 | 5 | 6.5 | 5.4 | 130±30 | |
| 44 | 101667-1 | 0.5 | 5.75 | 2 | 0.5 | 4.3 | 6.6 | 5.4 | 120+30/-20 | |
| 45 | 101379-1 | 0.6 | 1 | 2 | 0.8 | 5 | 7 | 5.5 | 80±35 | |
| 46 | 101437-1 | 1 | 0.8 | 2 | 0.5 | 4.5 | 6.5 | 5.5 | 135±25 | |
| 47 | 101445-1 | 0.6 | 1.5 | 2 | 0.8 | 5 | 7 | 5.5 | 80±35 | |
| 48 | 101511-1 | 0.6 | 1.3 | 2 | 0.8 | 5 | 7 | 5.5 | 80±35 | |
| 49 | 101568-1 | 0.6 | 2 | 2 | 0.8 | 5 | 7 | 5.5 | 80±35 | |
| 50 | 101642-1 | 0.8 | 2 | 2 | 0.5 | 4 | 6.5 | 5.5 | 90±25 | |
| 51 | 101498-1 | 0.8 | 10.4 | 0 | 0 | 5.3 | 7.1 | 5.6 | 40±10 | |
| 52 | 101369-1 | 1.5 | 2.8 | 2.8 | 1.4 | 5 | 7 | 5.8 | 90±30 | |
| 53 | 101381-1 | 0.43 | 1.75 | 1.83 | 0.4 | 5.6 | 8.1 | 5.8 | 80±20 | |
| 54 | 101174-1 | 1 | 1.1 | 2 | 0.5 | 5.3 | 7.1 | 6 | 90 Min | |
| 55 | 101193-1 | 1 | 1 | 2 | 2.2 | 5.5 | 7.5 | 6 | 140±20 | |
| 56 | 101462-1 | 1 | 1 | 1.8 | 0.5 | 5.5 | 7 | 6 | 90 Min | |
| 57 | 101540-1 | 0.6 | 1 | 2 | 1.3 | 5.5 | 7.5 | 6 | 80±35 | |
| 58 | 101249-1 | 1 | 1.1 | 2 | 0.5 | 5.3 | 7.3 | 6.1 | 50±20 | |
| 59 | 101169-1 | 1 | 0.8 | 2 | 0.5 | 5.7 | 7.7 | 6.2 | 120 Min | |
| 60 | 101371-1 | 1 | 3.93 | 2 | 0.5 | 5.7 | 7.5 | 6.2 | 85±30 | |
| 61 | 101220-1 | 1 | 1.1 | 2 | 0.5 | 5.3 | 7.6 | 6.5 | 90 Min | |
| 62 | 101311-1 | 1 | 1 | 2 | 0.5 | 6 | 8 | 6.5 | 115±30 | |
| 63 | 101520-1 | 1.5 | 3.6 | 2 | 0.5 | 6 | 8 | 6.5 | 200 Max | |
| 64 | 101695-1 | 0.8 | 5 | 0 | 0 | 5.5 | 8 | 6.5 | 80 Min | |
| 65 | 101618-1 | 0.65 | 1.75 | 1.83 | 0.4 | 5.6 | 8.1 | 6.8 | 72±21 | |
| 66 | 101222-1 | 2.5 | 6 | 4 | 1 | 5.9 | 9.4 | 6.9 | 80±20 | |
| 67 | 101283-1 | 2.5 | 6 | 4 | 1 | 5.9 | 10.4 | 6.9 | 100±25 | |
| 68 | 101416-1 | 2.5 | 3.6 | 4 | 1 | 5.9 | 13 | 6.9 | 90±20 | |
| 69 | 101666-1 | 1.3 | 3.6 | 1.7 | 0.5 | 6 | 8 | 7 | 80 Min | |
| 70 | 101718-1 | 1 | 2 | 2 | 1.9 | 6.5 | 9 | 7 | 85 Min | |
| 71 | 101219-1 | 1 | 1 | 2 | 1.9 | 6.5 | 8.5 | 7.1 | 110±30 | |
| 72 | 101593-1 | 1 | 2.1 | 2 | 1 | 6.2 | 8.2 | 7.1 | 100±20 | |
| 73 | 101153-1 | 1 | 0.6 | 2 | 2 | 7.5 | 9.5 | 7.5 | 165±35 | |
| 74 | 101190-1 | 0.6 | 3.95 | 0 | 0 | 7 | 8.5 | 7.5 | 50±10 | |
| 75 | 101353-1 | 1 | 1 | 2 | 1.9 | 6.5 | 9 | 8 | 90 Min | |
| 76 | 101085-1 | 1 | 1 | 2 | 2 | 8 | 10 | 8.6 | 100 Min | |
| 77 | 101338-1 | 1 | 1.5 | 2.9 | 1 | 8.3 | 10.8 | 9.1 | 160±25 | |
| 78 | 101274-1 | 2 | 1.2 | 4 | 1 | 7.9 | 10.2 | 9.2 | 75±25 | |
| 79 | 101184-1 | 1.8 | 3 | 1.5 | 8 | 8 | 10.8 | 9.8 | 120 Min | |
| 80 | 101084-1 | 1 | 1 | 1.8 | 0.5 | 9.9 | 11.4 | 10.4 | 110±30 | |
| 81 | 101152-1 | 0.8 | 0.7 | 1.8 | 0.3 | 8.5 | 11.3 | 10.5 | 85±20 | |
| 82 | 101244-1 | 1 | 3 | 1.8 | 1 | 10 | 11.5 | 10.5 | 110±30 | |
| 83 | 101189-1 | 0.58 | 3 | 0 | 0 | 10.3 | 12.3 | 10.7 | 25+/-10 | |
| 84 | 101673-1 | 0.6 | 2.5 | 2 | 0.5 | 10 | 12 | 10.8 | 120±25 | |
| 85 | 101768-1 | 0.6 | 1.5 | 2 | 0.5 | 10 | 12 | 10.8 | 120±25 | |
| 86 | 101769-1 | 1 | 2.6 | 2 | 0.8 | 10.7 | 12.5 | 11.1 | 120±30 | |
| 87 | 101279-1 | 1 | 1 | 1.8 | 0.5 | 9.9 | 12.4 | 11.4 | 90±25 | |
| 88 | 101423-1 | 1 | 1 | 1.8 | 0.5 | 12 | 13.5 | 12.5 | 110±20 | |
| 89 | 101207-1 | 2.5 | 4 | 4 | 1 | 12 | 15.5 | 13 | 80±25 | |
| 90 | 101375-1 | 1 | 1 | 1.7 | 2 | 11.7 | 14.5 | 13.3 | 120±30 | |
| 91 | 101124-1 | 1 | 3.6 | 1.83 | 0.4 | 16.57 | 18.07 | 17.07 | 90+30/-15 | |
| 92 | 20101010993 | 1.4 | 2.1 | 2 | 0.5 | 3.4 | 5.4 | 4 | 135±35 | |
| 93 | 20101011134 | 1.4 | 1 | 2 | 0.5 | 4 | 6 | 5 | 80 Min | |
| 94 | 20101011154 | 1 | 2 | 2 | 0.5 | 4.5 | 6.5 | 5.5 | 80 Min | |
| 95 | 20101011215 | 1.4 | 2.1 | 2 | 0.5 | 7.4 | 9.4 | 8 | 135±35 | |
| 96 | 20101011234 | 0.9 | 2 | 0 | 0 | 9.8 | 12 | 11 | 55±15 | |
| 97 | 20101011277 | 0.7 | 4 | 0 | 0 | 6.5 | 8 | 6.9 | 120±35 | |
| 98 | 20101011279 | 1 | 3.5 | 3.5 | 0.5 | 5.5 | 7.5 | 6.5 | 80±20 | |
| 99 | 20101011283 | 1.3 | 2 | 2 | 0.5 | 6 | 8 | 7 | 80 Min | |
| 100 | 20101011295 | 1 | 1 | 1.83 | 0.4 | 3.6 | 5.6 | 4.6 | 80±20 | |
| 101 | 20101011300 | 1.5 | 1.35 | 2 | 0.3 | 2.45 | 3.65 | 4.15 | 95±28 | |
| 102 | 20101011310 | 0.7 | 1 | 0 | 0 | 4.4 | 6.2 | 5.3 | 70±20 | |
| 103 | 20101011425 | 0.8 | 2 | 1.8 | 0.5 | 9.6 | 11.3 | 10.5 | 100±20 | |
| 104 | 20101011508 | 1 | 2 | 2 | 0.5 | 4.5 | 6.5 | 5.5 | 50±15 | |
| 105 | 20101011552 | 1.5 | 2 | 2.2 | 0.5 | 4 | 5.5 | 4.5 | 36±7 | |
| 106 | 20101011463 | 0.6 | 0.8 | 2 | 0.5 | 6 | 8 | 6.5 | 45±15 | |
| 107 | 20101011550 | 0.7 | 1.4 | 1.8 | 0.6 | 3.4 | 7.8 | 6.2 | 75±20 | |
| 108 | 20101011505 | 1.5 | 2 | 1.95 | 0.4 | 3.8 | 6 | 4 | 125±25 | |
| 109 | 20101011547 | 0.8 | 2 | 2 | 0.4 | 3 | 3.8 | 3.2 | 55±15 | |
| 110 | 20101011574 | 1 | 1.4 | 2 | 0.5 | 3.5 | 5 | 3.7 | 70±20 | |
| 111 | 20101011565 | 0.6 | 11 | 1.9 | 0.4 | 3.4 | 4.9 | 3.55 | 60±15 | |
| 112 | 20101011443 | 0.6 | 5 | 1.9 | 0.25 | 4.2 | 5.4 | 4.6 | 110±25 | |
| 113 | 20101011504 | 0.8 | 4 | 1.8 | 0.5 | 7.5 | 10 | 9 | 50±20 | |
| 114 | 20101011574 | 1 | 1.4 | 2 | 0.5 | 3.5 | 5 | 3.7 | 70±20 | |
| 115 | 20101011411 | 0.64 | 2.5 | 1.88 | 0.25 | 6 | 8.5 | 7.2 | 60±15 | |
| 116 | 20101011581 | 1.5 | 1.35 | 2 | 0.4 | 2.75 | 4.15 | 2.95 | 60±15 | |
| 117 | 20101011642 | 0.8 | 1 | 2 | 0.5 | 2.6 | 4.1 | 3.5 | 120±25 | |
| 118 | 20101011673 | 0.6 | 1.05 | 1.8 | 0.35 | 1.85 | 2.8 | 2.05 | 60±20 | |
| 119 | 20101011626 | 1.4 | 2.3 | 2 | 0.5 | 7 | 9.5 | 7.9 | 150±30 | |
| 120 | 20101011837 | 0.8 | 1.2 | 2 | 1 | 3.95 | 5.3 | 4.5 | 80±15 | |
| 121 | 20101011885 | 0.8 | 3 | 2 | 0.5 | 3.2 | 4.5 | 3.5 | 70±20 | |
| 122 | 20101011951 | 0.7 | 1.6 | 1.8 | 0.7 | 4.7 | 6.2 | 5.2 | 80±20 | |
| 123 | 20101011952 | 0.7 | 1.6 | 1.8 | 0.7 | 7.05 | 8.55 | 7.55 | 80±20 | |
| 124 | 20101011963 | 1 | 0.8 | 2 | 0.5 | 4.5 | 6 | 5 | 135±25 | |
| 125 | 20101011968 | 0.8 | 0.8 | 2 | 0.4 | 2.7 | 4 | 3.2 | 70±20 | |
| 126 | 10101011931 | 1 | 1.3 | 2 | 0.5 | 3.5 | 4.8 | 4 | 50±15 | |
| 127 | 10101011930 | 1 | 1.3 | 2 | 0.4 | 2.6 | 3.4 | 2.9 | 125±25 | |
| 128 | 10101011827 | 1 | 0.8 | 2 | 0.5 | 4.5 | 6 | 5 | 135±25 | |
| 129 | 20101011533 | 2.54 | 5.62 | 4.32 | 0.51 | 7.66 | 12.31 | 8.58 | 330±60 | |
| 130 | 10101021980 | 0.6 | 0.8 | 1.8 | 0.35 | 3 | 4.5 | 4 | 65±15 | |
| 131 | 20101011542 | 0.5 | 1.75 | 1.8 | 0.4 | 7.8 | 11 | 9.2 | 70±20 | |
| 132 | 20101011536 | 0.5 | 1.75 | 1.8 | 0.4 | 7.3 | 10.5 | 8.7 | 70±20 | |
| 133 | 20101011389 | 1 | 1.5 | 2.7 | 1.9 | 3.5 | 5.5 | 4.7 | 125±25 | |
| 134 | 20101011358 | 0.6 | 2.9 | 2 | 0.5 | 5 | 6.4 | 5.5 | 65±25 | |
| 135 | 20101011261 | 0.6 | 1.9 | 2 | 1.5 | 6.1 | 8.1 | 6.6 | 60±15 | |
| 136 | 20101011671 | 0.6 | 0.9 | / | / | 4.1 | 5.8 | 4.8 | 100±20 | |
| 137 | 20101011566 | 0.8 | 1.4 | 2 | 0.5 | 9.9 | 12.6 | 10.8 | 60±10 | |
| 138 | 20101011369 | 0.9 | 1.5 | 0 | 0 | 3.6 | 5.1 | 4.3 | 45±10 | |
