magnetic 2 pogo pin connector pitch 2.0mm manufacturer supply

magnetic 2 pogo pin connector magnetic pogo pin magnetic pogo pin connector spring-loaded magnetic pogo pin connector magnetic pin connector

magnetic 2 pogo pin connector pitch 2.0mm manufacturer supply

Original price was: $7.39.Current price is: $7.29.

76 in stock

  • pitch
    2.0mm
  • Pin Amount
    2 pins
  • Salt Spray
    48h Min

Description

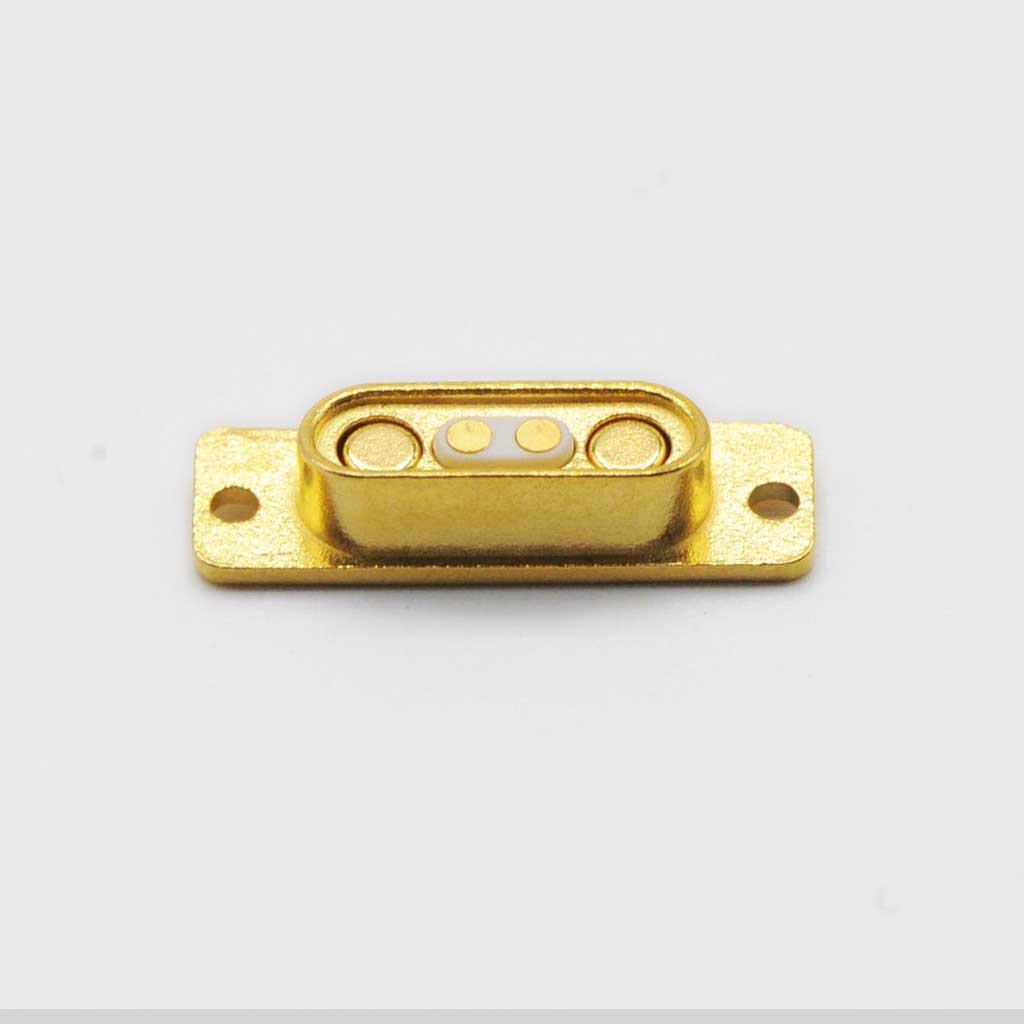

magnetic 2 pogo pin connector
A small amount of stock is available from stock with 2pin magnetic pogo pin connectors on the board side, configurable line-side USB charging cable, standard current 1A, and can be customized according to needs. Welcome to ask us for free product manuals or customized products.



Drawing description


1 Dimensions shall be interpreted per ASME Y14.5M
2 Electrical performance<2.1>Current rating: 1.0A
<2.2>Voltage rating: 36VAC/DC
<2.3>Contact Resistance:30mOhm Max
<2.4>Insulation Resistance:100MOhm minimum
3 Environmental performance
<3.1>RoHS compliant
<3.2>Salt Spray:48h Min
<3.3>Operating Temperature range:-40C~+85C
<3.4>Withstanding High Temperature:260C/10Sec
4 Packaging:Carrier tape/Bag/Tray/Tube



Product Image

magnetic pin connector
magnetic pin connector
spring-loaded magnetic pogo pin connector
spring-loaded magnetic pogo pin connector
magnetic pogo pin
magnetic pogo pin
magnetic pogo pin connector
magnetic pogo pin connector

Drawings

magnetic 2 pogo pin connector drawing
magnetic 2 pogo pin connector drawing

Drawing download 121       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “magnetic 2 pogo pin connector pitch 2.0mm manufacturer supply”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

pitch, 2.0mm, Pin Amount, 2 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 1.0 A, Rated Voltage, 36 V, RoHS, RoHS compliant, Salt Spray, 48h Min
