3 pin pogo pin connector dip pitch 4.5mm manufacturers direct supply

3 pin pogo pin connector dip pogo pin connector pogo pin connector 3 pin pogo connector pogo pin pitch 4.5mm 3 pin pogo pins

3 pin pogo pin connector dip pitch 4.5mm manufacturers direct supply

Original price was: $1.06.Current price is: $0.98.

3004 in stock

  • working height
    9.5mm
  • pitch
    4.5mm
  • Force
    100 ±30gf

Description



3 pin pogo pin connector



Drawing description


1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See table 1)
    <2.1>The force is the average of forces obtained when plunger goes downwards and upwards
    <2.2>Warning: Working height is not permitted to be less than Min working height
3 Electrical performance
    <3.1>Current rating: 2.0A
    <3.2>Voltage rating: 12VAC/DC
    <3.3>Static Resistance:50mOhm Max(at working height)
    <3.4>Insulation Resistance:100MOhm minimum
4 Environmental performance
    <4.1> RoHS compliant
    <4.2>Operating Temperature range:-40°C~+85°C
    <4.3>Withstanding High Temperature:260°C/10Sec
5 Packaging: Bag

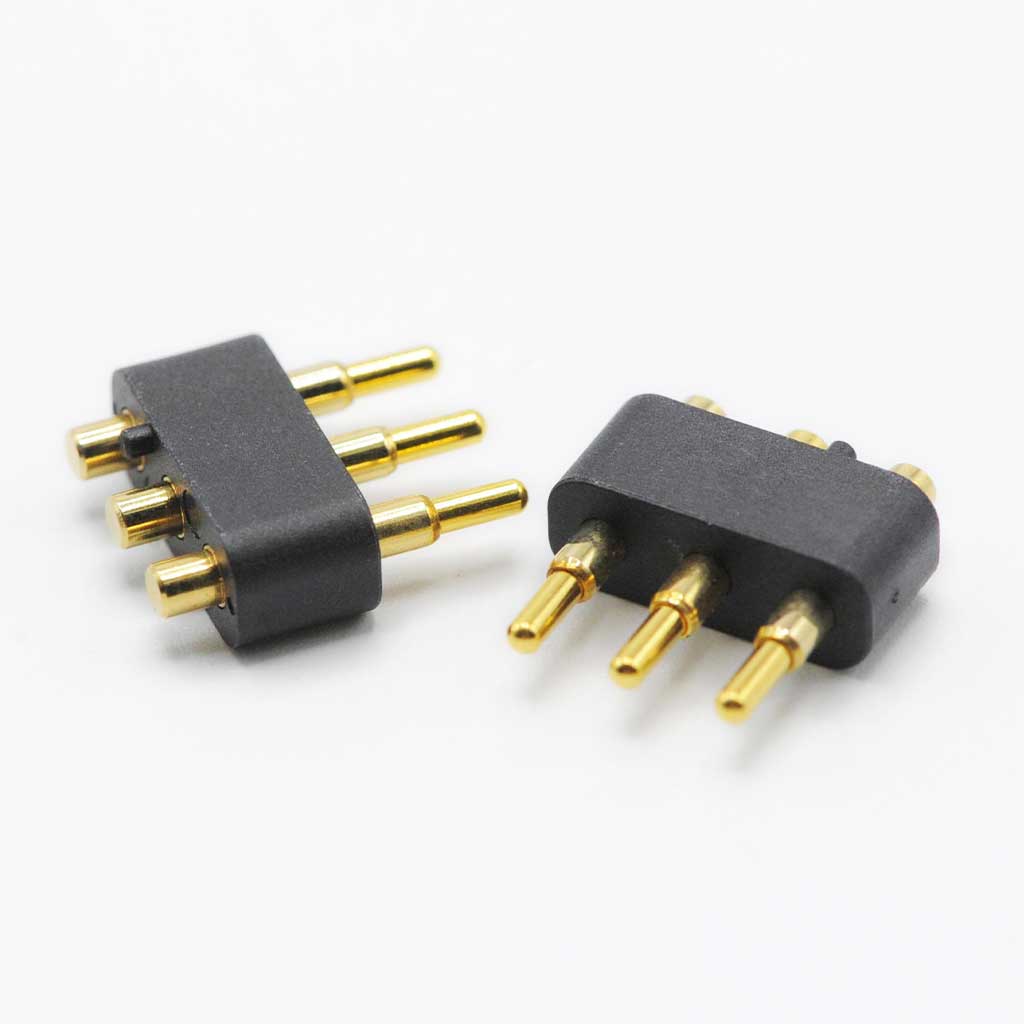

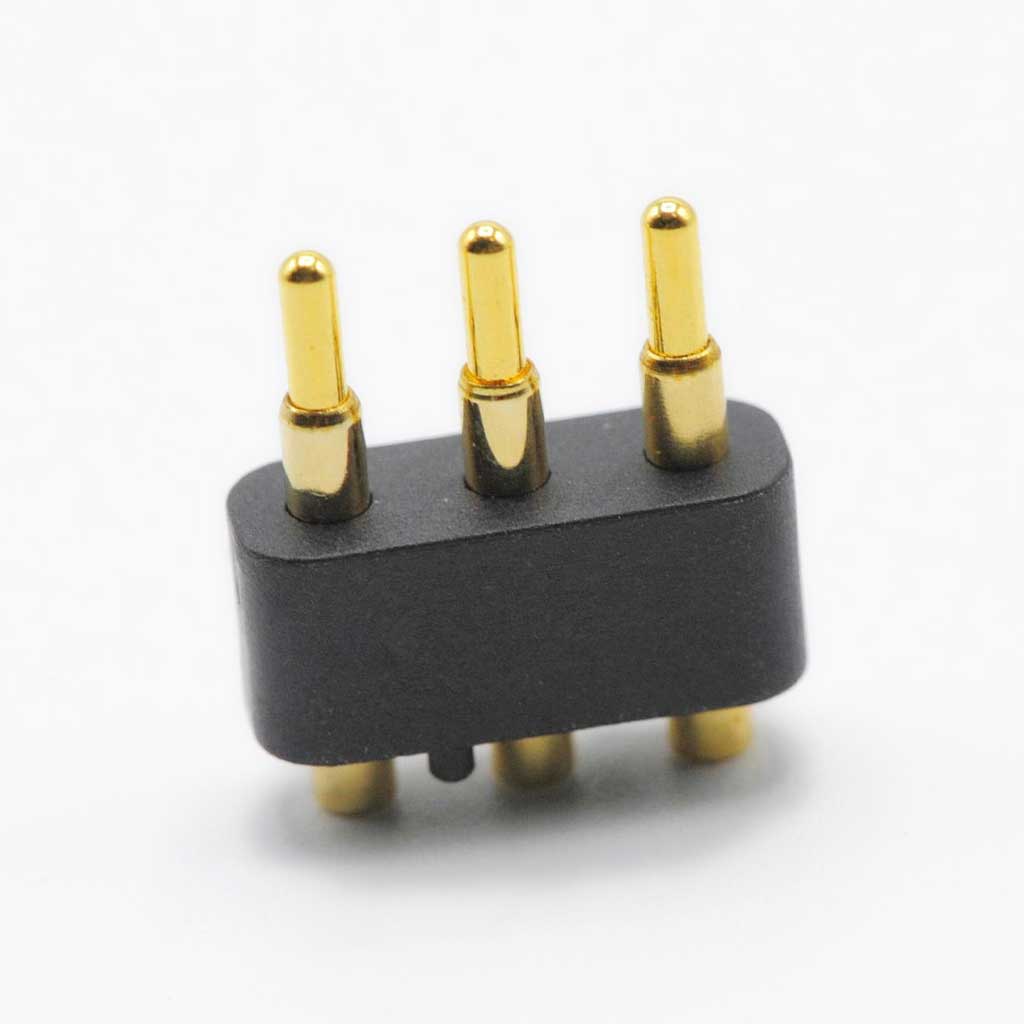

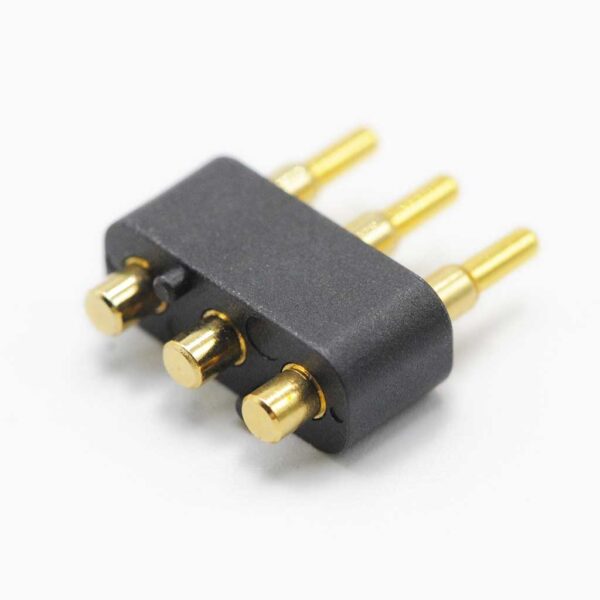

Product Image

3 pin pogo pins
3 pin pogo pins
3 pin pogo pin connector
3 pin pogo pin connector
pogo pin pitch 4.5mm
pogo pin pitch 4.5mm
3 pin pogo connector
3 pin pogo connector
dip pogo pin connector
dip pogo pin connector
pogo pin connector
pogo pin connector

Drawings

3 pin pogo pin pitch 4.5mm drawing
3 pin pogo pin pitch 4.5mm drawing

Drawing download 96       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “3 pin pogo pin connector dip pitch 4.5mm manufacturers direct supply”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 9.5mm, pitch, 4.5mm, Pin Amount, 3 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 100 ±30gf
