5 pin pogo pin connector, spring loaded connector, pitch 4.45mm
- Pin total height5.20mm
- pitch2.54mm
- Force80gf~180gf
Description
5 pin pogo pin connector, spring loaded connector, pitch 4.45mm
5 pin pogo pin connector, the pitch is 4.0mm~4.54mm, the pin diameter is 0.90mm, the body diameter is 1.50mm, the rated current is 3.0A, it can be customized according to the needs, welcome to contact us or send me an inquiry.Notes:
Notes: 1 Dimensions shall be interpreted per ASME Y14.5M2 Electrical performance<2.1>Current rating: 3.0A
<2.2>Voltage rating: 36VAC/DC
<2.3>Contact Resistance:30mOhm Max
<2.4>Insulation Resistance:100MOhm minimum
3 Environmental performance
<3.1>RoHS compliant
<3.2>Salt Spray:48h Min
<3.3>Operqting Temperature range:-40C~+85C
<3.4>Withstanding High Temperature:260C/10Sec
4 Packaging:Carrier tape.

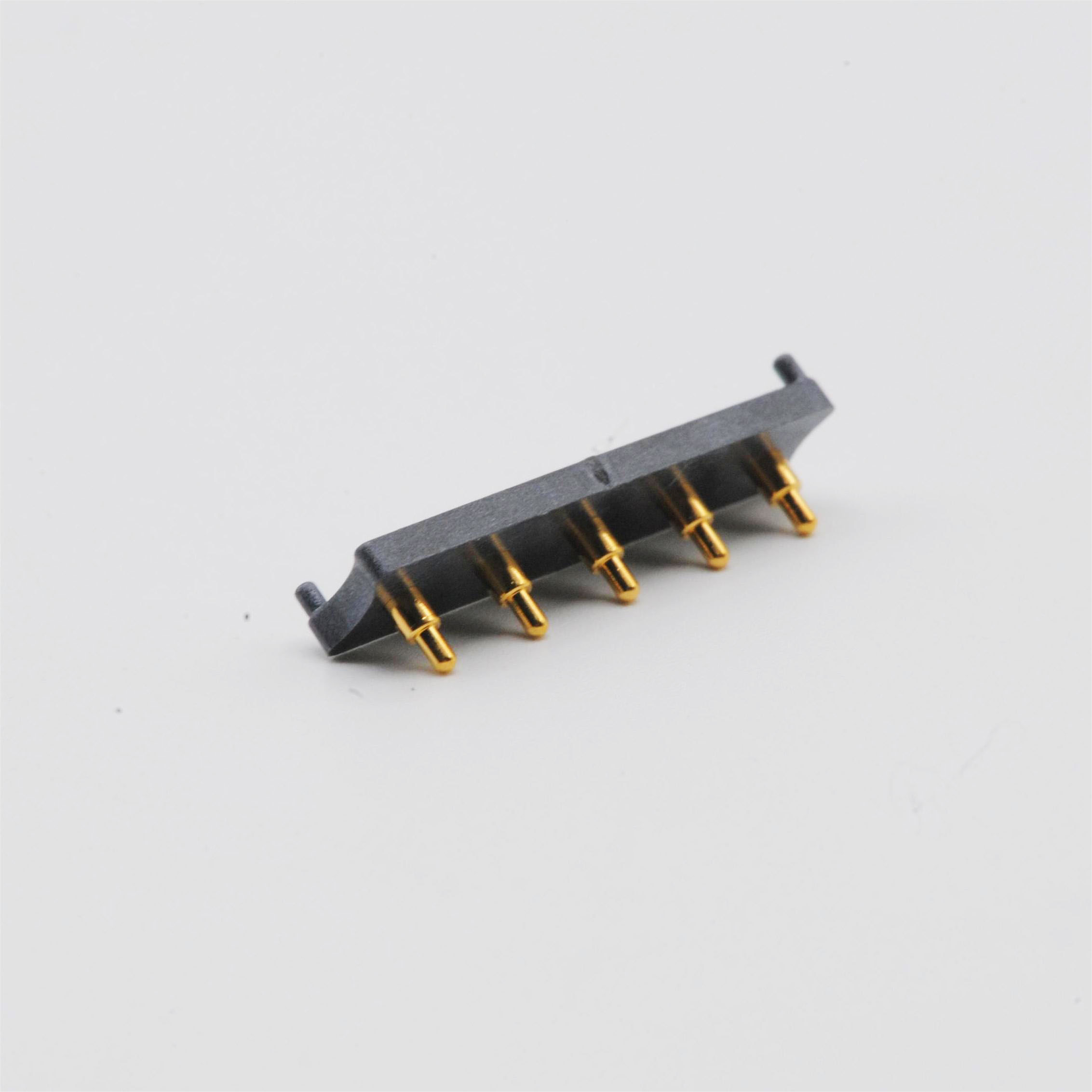

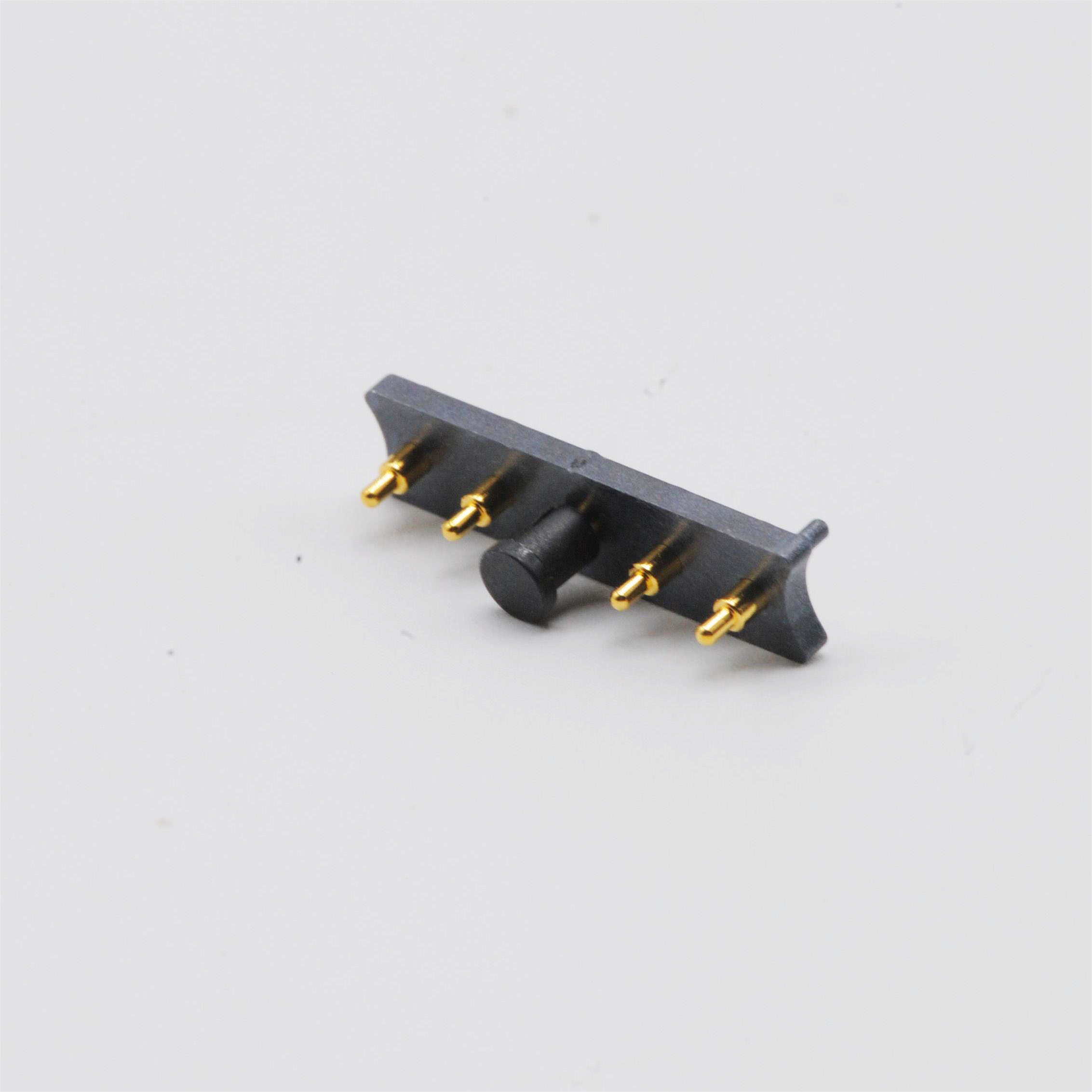

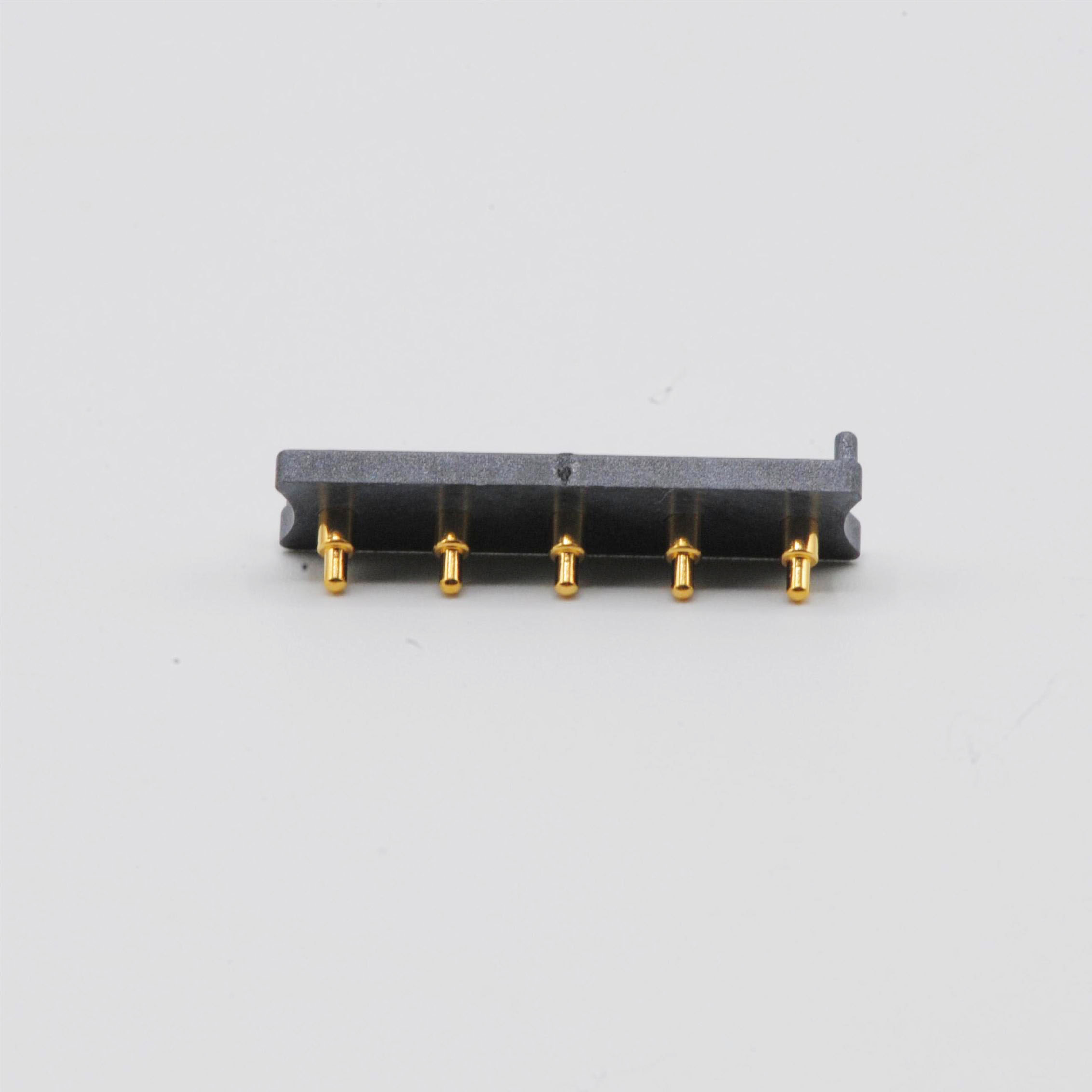

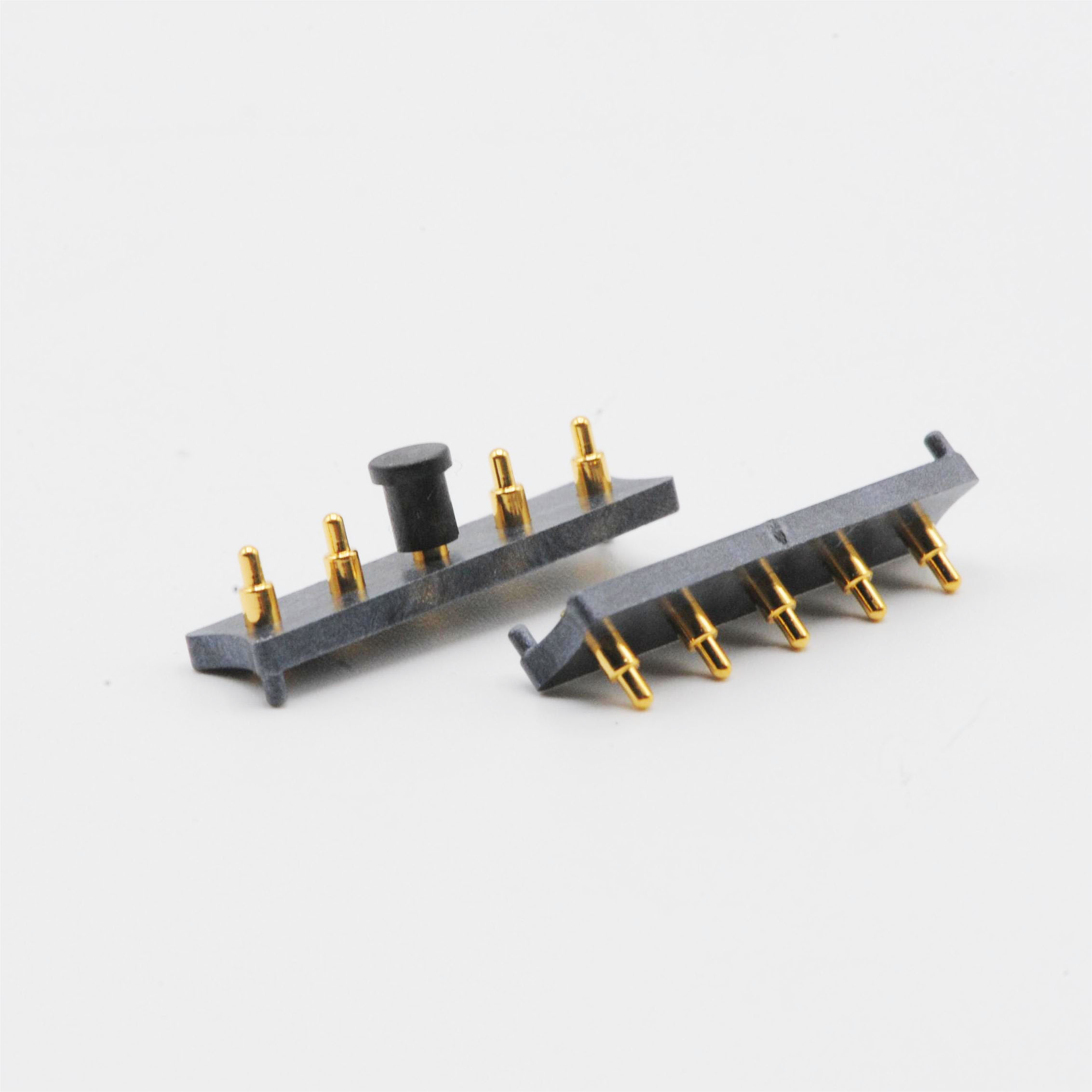

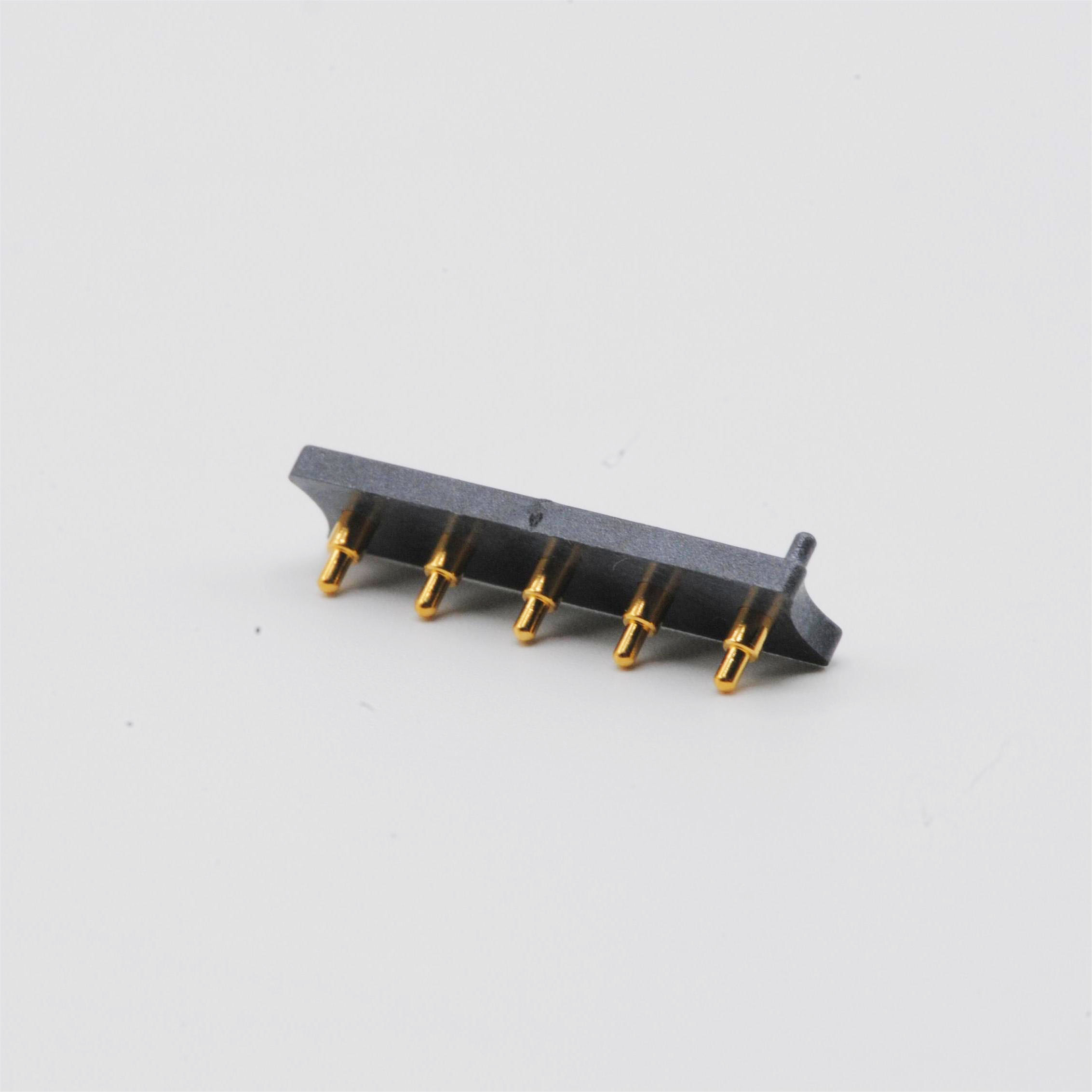

physical photos:
spring loaded contacts
Additional information
| Parameter | Pin total height, 5.20mm, pitch, 2.54mm, Pin Amount, 5 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 80gf~180gf |
|---|
