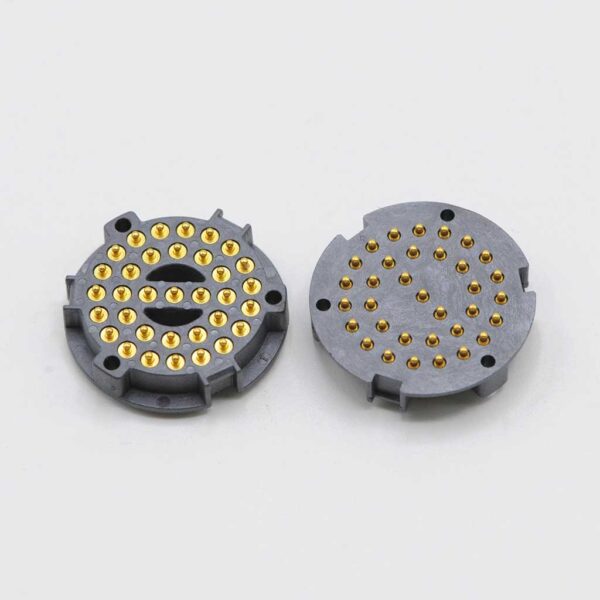

Circular 34 pin pogo pins connector 5.10mm working height
Original price was: $26.74.$25.34Current price is: $25.34.
100 in stock
- Work Height5.1 mm
- Pin Amount34 pins
- Force50 ±15gf
Description
34 pin pogo pins connector
circular pogo pins connector
34 pin circular pogo pins connector. custom pogo pin connector, can be used for multi-signal transmission, easy to install. Please contact us for customization,
Drawing description
1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanica performance(See the table 1)
<2.1> The force is the average of forces obtainedwhen plunger goes downwards and upwards
<2.2> Warning: Working height are not permitted tobe less than Min working height
3 Electrica performance
<3.1>Current rating: 2.0A
<3.2>Voltage rating: 36VAC/DC
<3.3>Dynamic Resistance:30mOhm Max(between max and min working height)
<3.4>Insulation Resistance:100MOhm minimum
4 Environmenta performance
<4.1>RoHS compliant
<4.2>Salt Spray:48h Min
<4.3>Operating Temperature range:-40C~+85C
<4.4>Withstanding Higt Temperature: 260C/10Sec
5 Packaging:Tray
Product Image
Additional information
| Parameter | Work Height, 5.1 mm, Pin Amount, 34 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, salt spray, 48h Min, 36 V, Force, 50 ±15gf |
|---|
