Name: high current pogo pins, DiameterΦ 1.50mm, Working Height 3.00mm - Top-Link
Brand: Top-Link
SKU: 10101010529
Price: 0.26 USD
Availability: InStock

high current pogo pins, DiameterΦ 1.50mm, Working Height 3.00mm

$0.26

5331 in stock

Working Stroke
3.0 mm
DiameterΦ
1.5mm
Force
40土12gf

SKU: 10101010529 Category: Pogo Pins Tags: high current pogo pins,pogo pin,Pogo Pin Single Contact,pogo pins,spring pin connector,

Description

high current pogo pins, DiameterΦ 1.50mm, Working Height 3.00mm

The high-current pogo pin can reach 30A current and is used in products with special requirements on current. The standard pogo pin current is generally 2A and the service life is 10,000 times. High current pogo pins need special customization, please contact us for customization

Notes:

1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanica performance(See the table 1)
<2.1>The force is the average of forces obtained when plungergoes downwards and upwards.
<2.2>Warning:Working height are not permitted to be lessthan Min working height.Electrical performance
3 Resistance:30mOhm Max.
Current rating: 2.0A
4 Packaging specification conforms to ElA 4815 RoH
S compliant

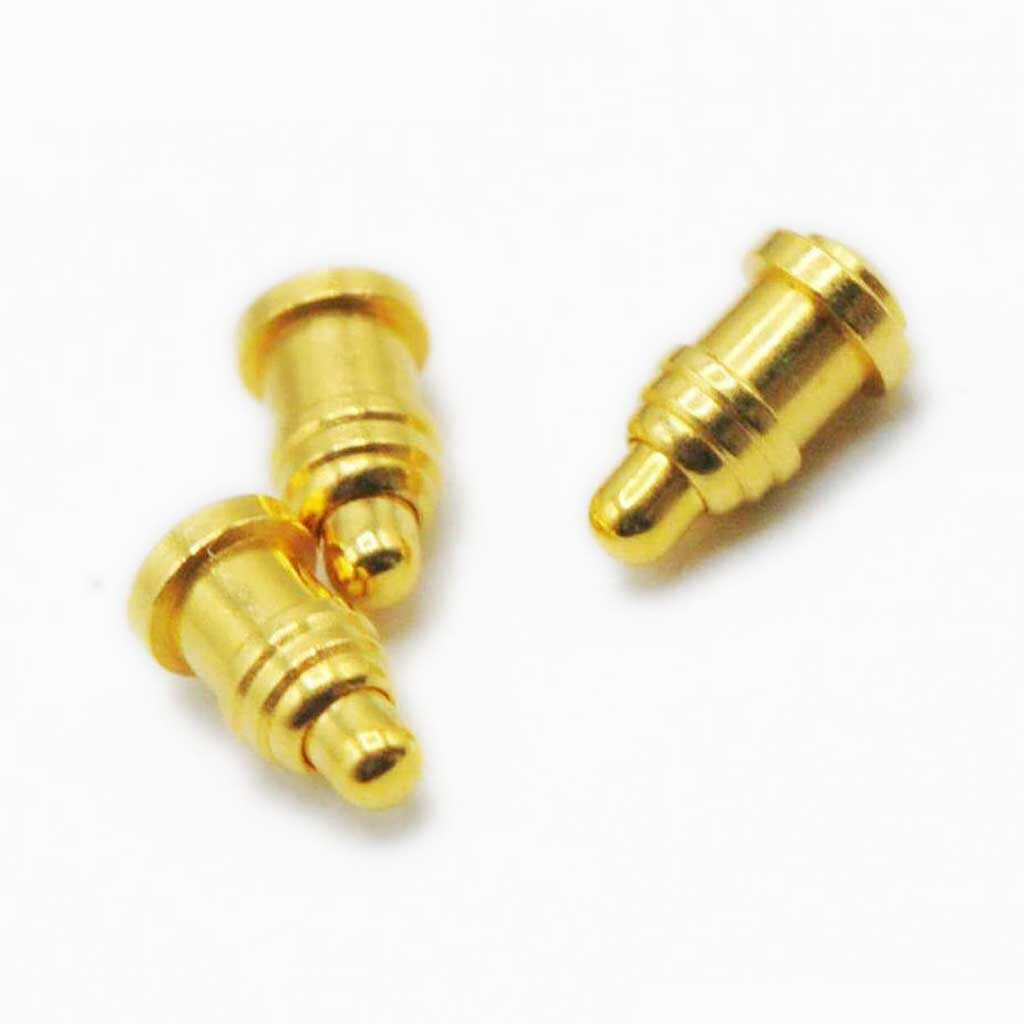

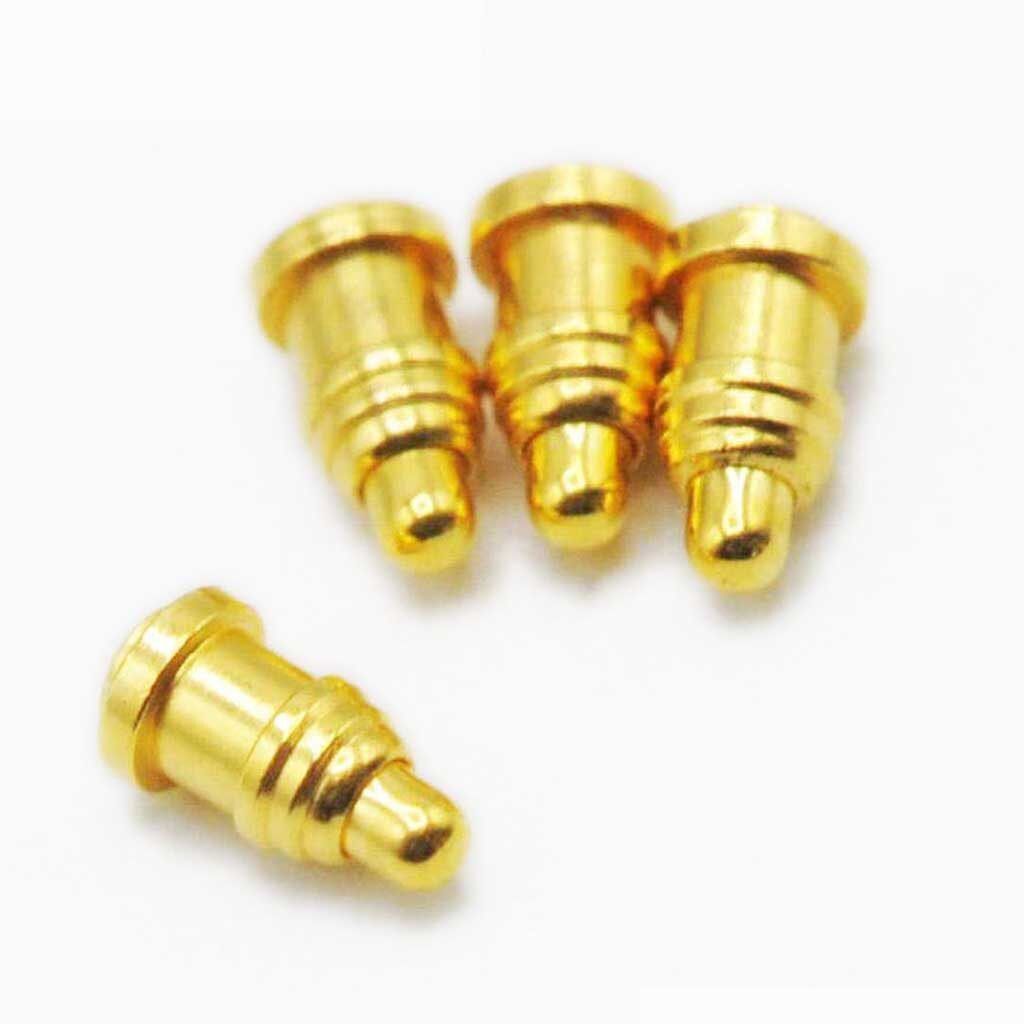

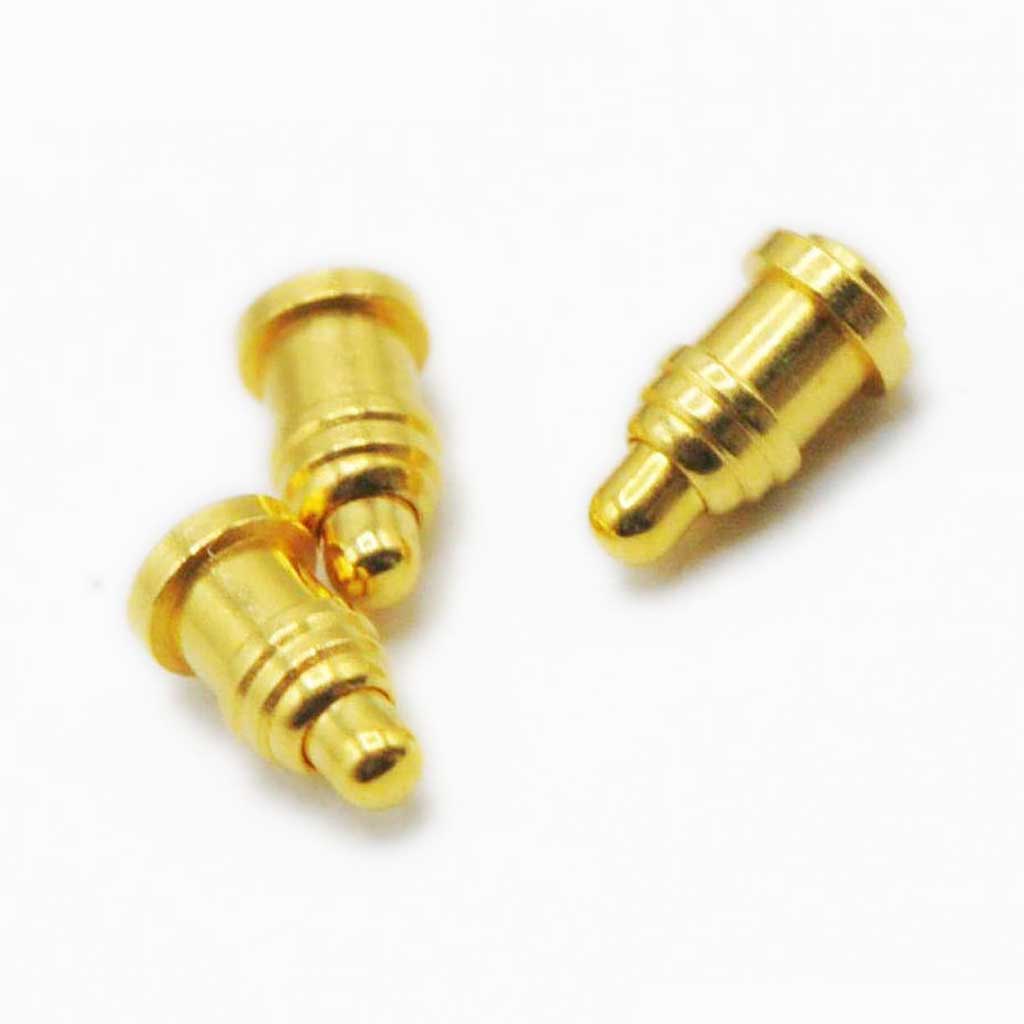

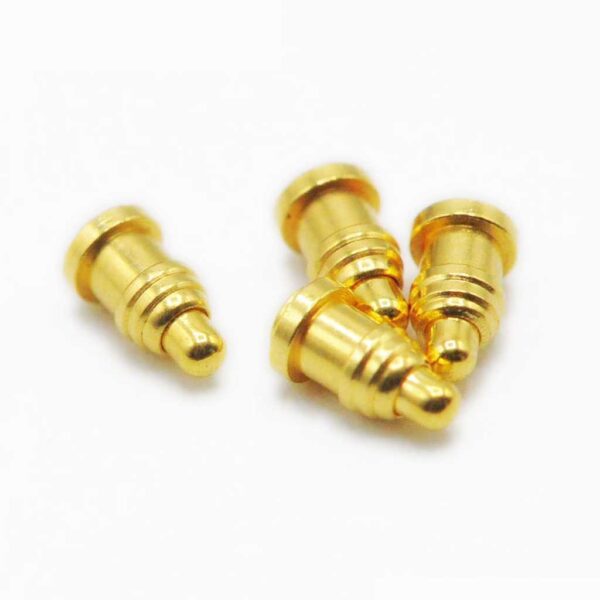

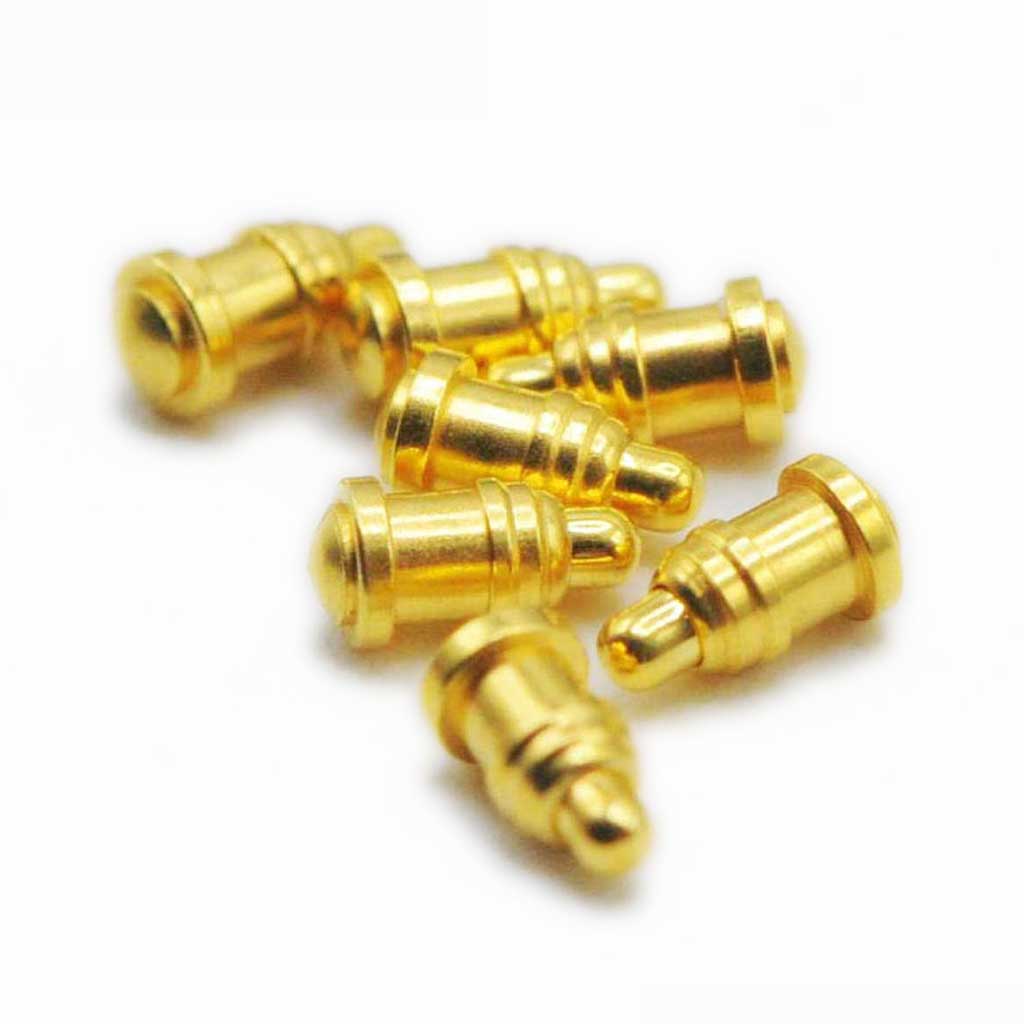

physical photos

Drawings

Drawing download 103 Inquire now send mail now

Reviews

There are no reviews yet.

Be the first to review “high current pogo pins, DiameterΦ 1.50mm, Working Height 3.00mm”

Additional information

Parameter	Working Stroke, 3.0 mm, DiameterΦ, 1.5mm, Pitch, 0, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 40土12gf
