pogo pin connector working height 4mm, custom manufacturing
$0.53
446 in stock
- working height4.00mm
- DiameterΦ1.50mm
- Force30 ±10gf
Description
pogo pin connector working height 4.00mm
We have 18 years of pogo pin manufacturing experience, and our products are applied to medical equipment, smart watches, Bluetooth headsets, AR VR, automotive electronic equipment, and provide customers with customized solutions and products.

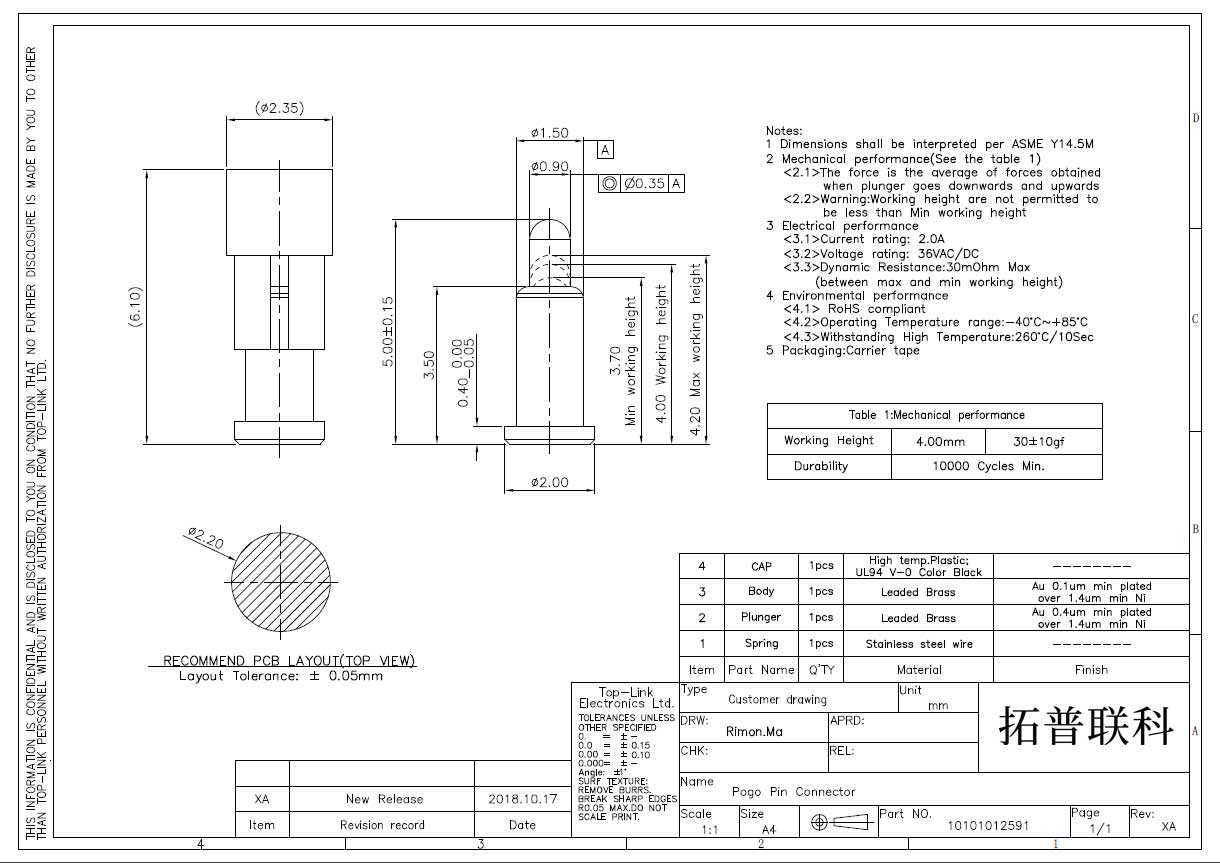

Notes:
1 Dimensions shall be interpreted per ASME Y14.5M2 Mechanical performance(See the table 1)
<2.1>The force is the average of forcesobtainedwhen plunger goes downwards and upwards
<2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
<3.1>Current rqting: 2.0A
<3.2>Voltage rating: 36VAC/DC
<3.3>Dynamic Resistance:30mOhm Max(betweenmax and min working height)
4 Environmental performance
<4.1> RoHS compliant<4.2>Operqting Temperature range:-40C~+85C
<4.3>Withstanding High Temperature:260C/10Sec
5 Packaging:Carrier tape

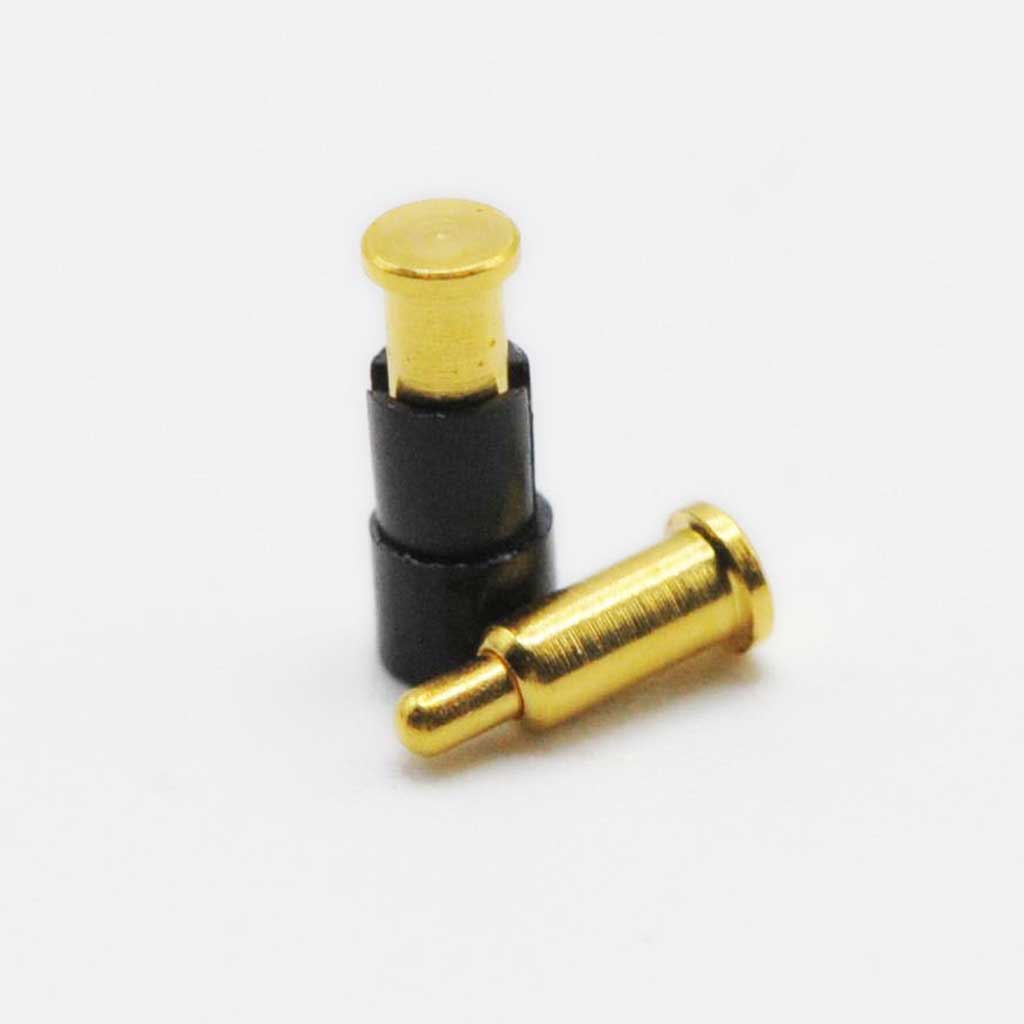

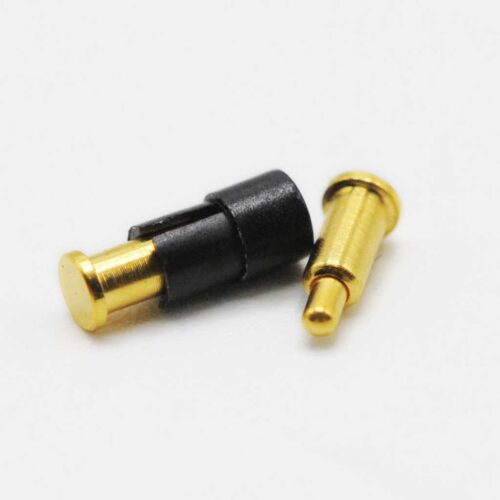

physical photos:
Additional information
| Parameter | working height, 4.00mm, DiameterΦ, 1.50mm, Pin Amount, 1 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 30 ±10gf |
|---|
