smt pogo pin connector working height 2.8mm

Original price was: $0.61.Current price is: $0.53.

2200 in stock

  • working height
    2.8mm
  • plunger Φ
    1.5mm
  • Force
    70 ±20gf

Description



smt pogo pin connector

Surface mount technology (SMT) Pogo pins are a type of Pogo pin that can be directly mounted onto a printed circuit board (PCB) using surface mount technology.
toplink can customize all kinds of pogo pin connectors, or precision connector components, contact us for free product manuals.



Drawing description


1 Dimensions shall be interpreted per ASME Y14.5M.
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtained when plungergoes downwards and upwards.
    <2.2>Warning:Working height are not permitted to be lessthan Min working height.
3 Electrical performance
Resistance:30mOhm Max.
Current rating: 2.0A
4 Packaging specification conforms to ElA 481
5 RoHS compliant

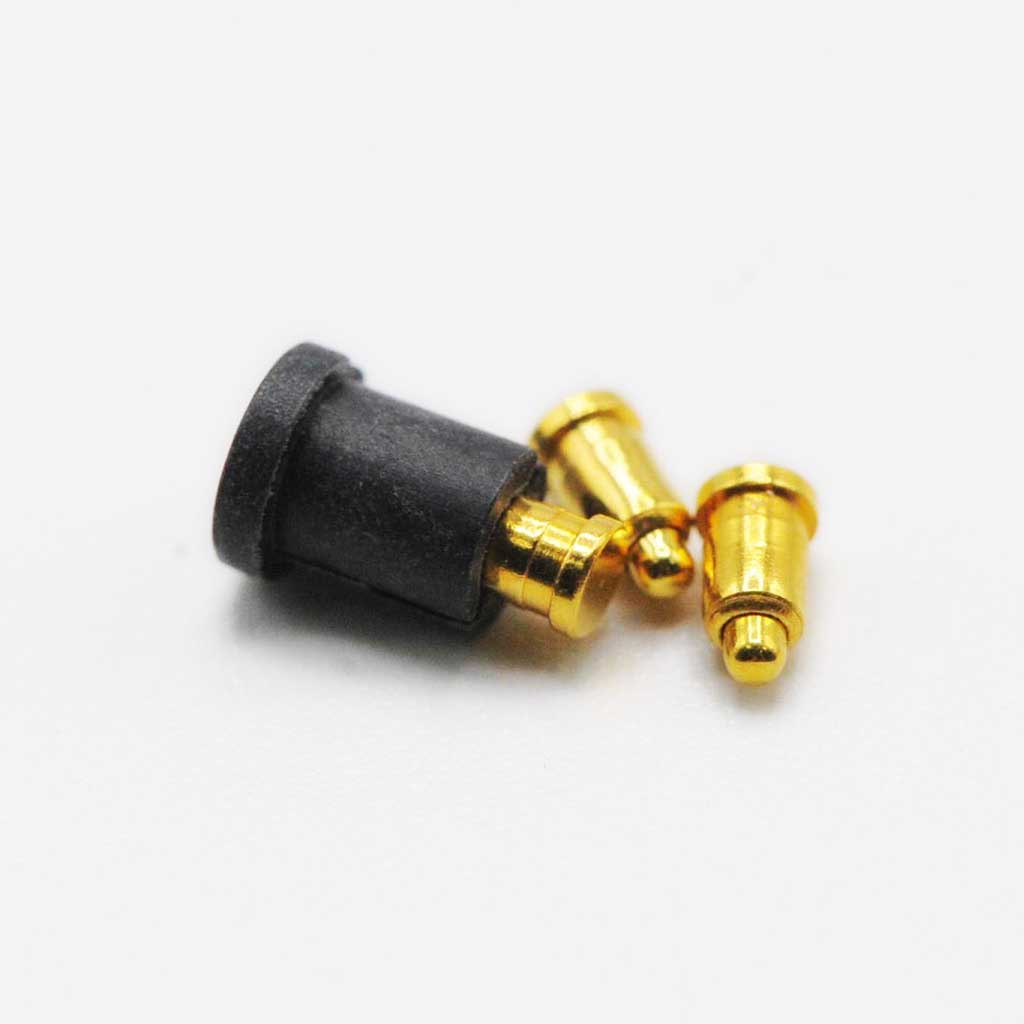

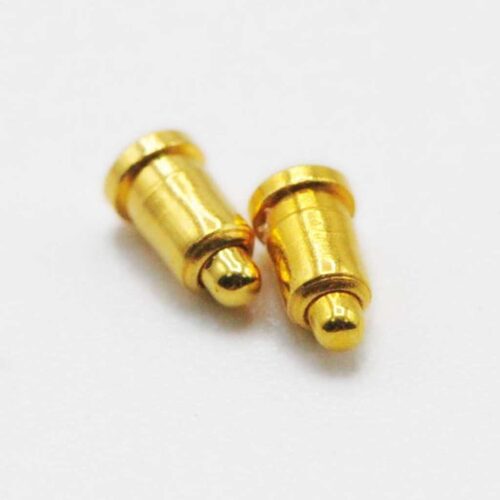

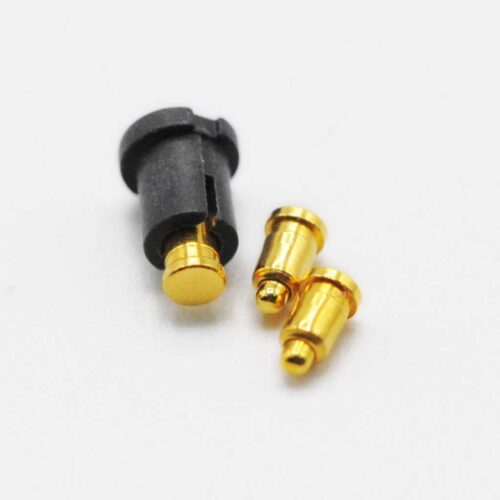

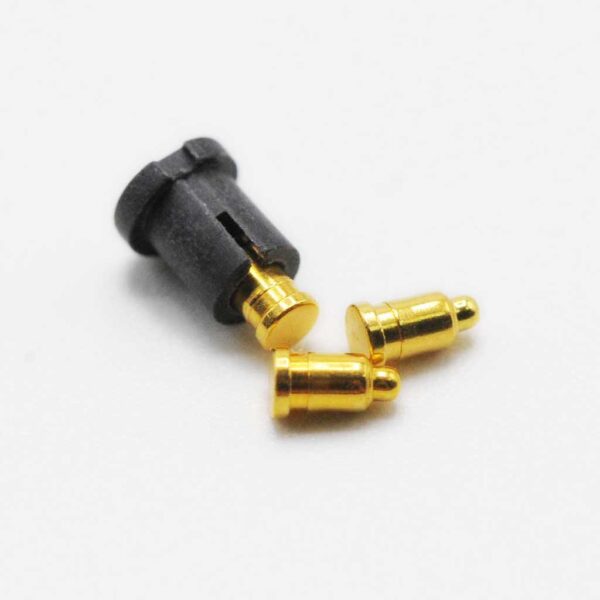

Product Image

pogo pin types
pogo pin types
small pogo pins
small pogo pins
smd pogo pins
smd pogo pins
smt pogo pin connector
smt pogo pin connector
smt pogo pins
smt pogo pins

Drawings

smt pogo pin connector drawing
smt pogo pin connector drawing

Drawing download 107       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “smt pogo pin connector working height 2.8mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 2.8mm, plunger Φ, 1.5mm, height, 3.3mm, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 70 ±20gf
